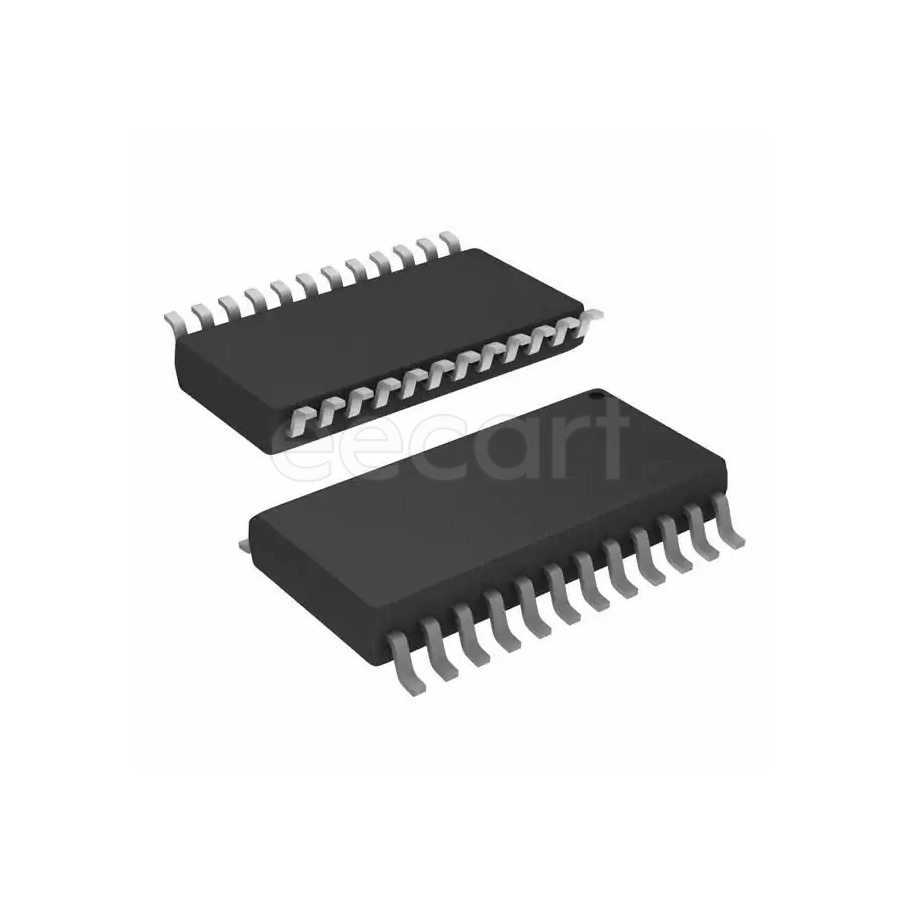

AD604ARZ
Manufacturer:
Analog Devices
Mfr.Part #:
AD604ARZ
Datasheet:
Description:
Amplifiers - Op Amps, Buffer, Instrumentation SOIC-24 SMD/SMT Variable Gain Amplifiers Number of Circuits:2
| Parameter | Value |
|---|---|
| Length | 15.6 mm |
| Width | 7.6 mm |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 24 |
| Resistance | 300 kΩ |
| Height | 2.35 mm |
| Packaging | Tube |
| Lead Free | Contains Lead |
| Radiation Hardening | No |
| RoHS | Compliant |
| Polarity | |
| REACH SVHC | No SVHC |
| Contact Plating | Tin |
| Number of Elements | 6 |
| Min Input Voltage | 100 mV |
| Number of Circuits | 2 |
| Bandwidth | 40 MHz |
| Operating Supply Voltage | 5 V |
| Lifecycle Status | Production (Last Updated: 2 months ago) |
| Max Power Dissipation | 1.7 W |
| Power Dissipation | 1.7 W |
| Number of Channels | 2 |
| Slew Rate | 170 V/µs |
| Common Mode Rejection Ratio (CMRR) | -20 dB |
| Operating Supply Current | 31 mA |
| -3db Bandwidth | 40 MHz |
| Input Bias Current | 27 mA |
| Noise Figure | 8.4 dB |
| Max Input Voltage | 2.9 V |
| Nominal Supply Current | 32 mA |
| Output Current per Channel | 40 mA |
| Gain Bandwidth Product | 40 MHz |
| Input Offset Voltage (Vos) | 30 mV |
| Max Dual Supply Voltage | 5 V |
| Voltage Gain | 54 dB |
| Number of Amplifiers | 2 |
| Input Voltage Noise Density | 0.8 nV/sqrt Hz |
| Schedule B | 8542330000 |
| Manufacturer Lifecycle Status | PRODUCTION (Last Updated: 2 months ago) |
| Amplifier Type | Variable Gain Amplifiers |
| Max Supply Voltage | 5 V |
| Min Supply Voltage | 5 V |
